SPECIFICATIONS

• Base size - 1.5 m x 0,92 m
• Fit all bakkies and most trailers
• Overall size - 1,5 x 1,2 m x 0,75 m (L x W x H)
• Dry weight - 94 kg easily loaded
• 500 litre plastic tank
• Sturdy tubilar steel frame
• Four carry handles

FEATURES

• 5 m suction hose with strainer
• 15 m discharge hose with nozzle
• Provision for second hose
• One multi valve to
• "Fill - Spray - Drain" simple and reliable operation
• "Drain" setting used to pump out via the suction hose
• Reliable HYMECH 50 EH self priming centrifugal pump

OPERATION

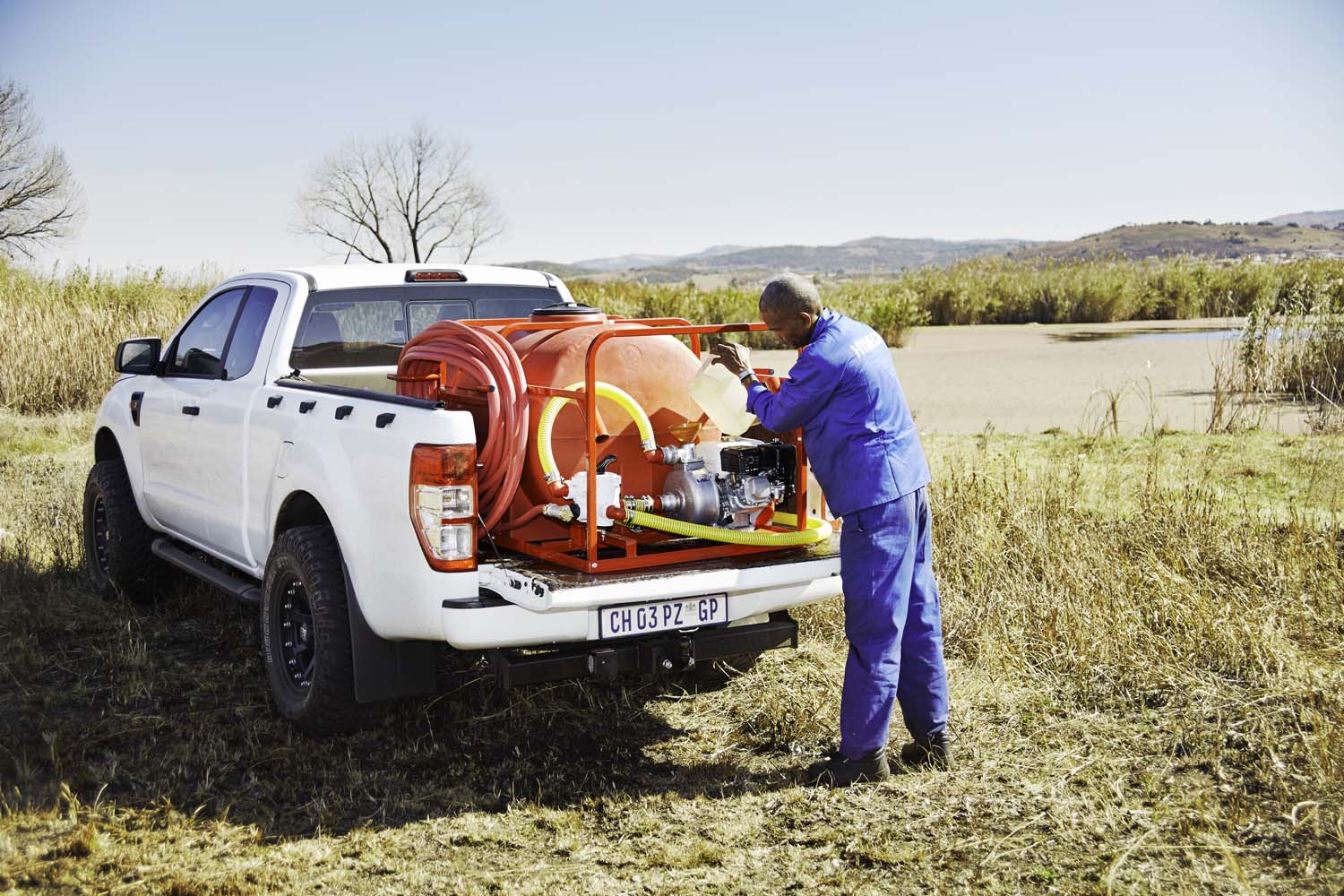

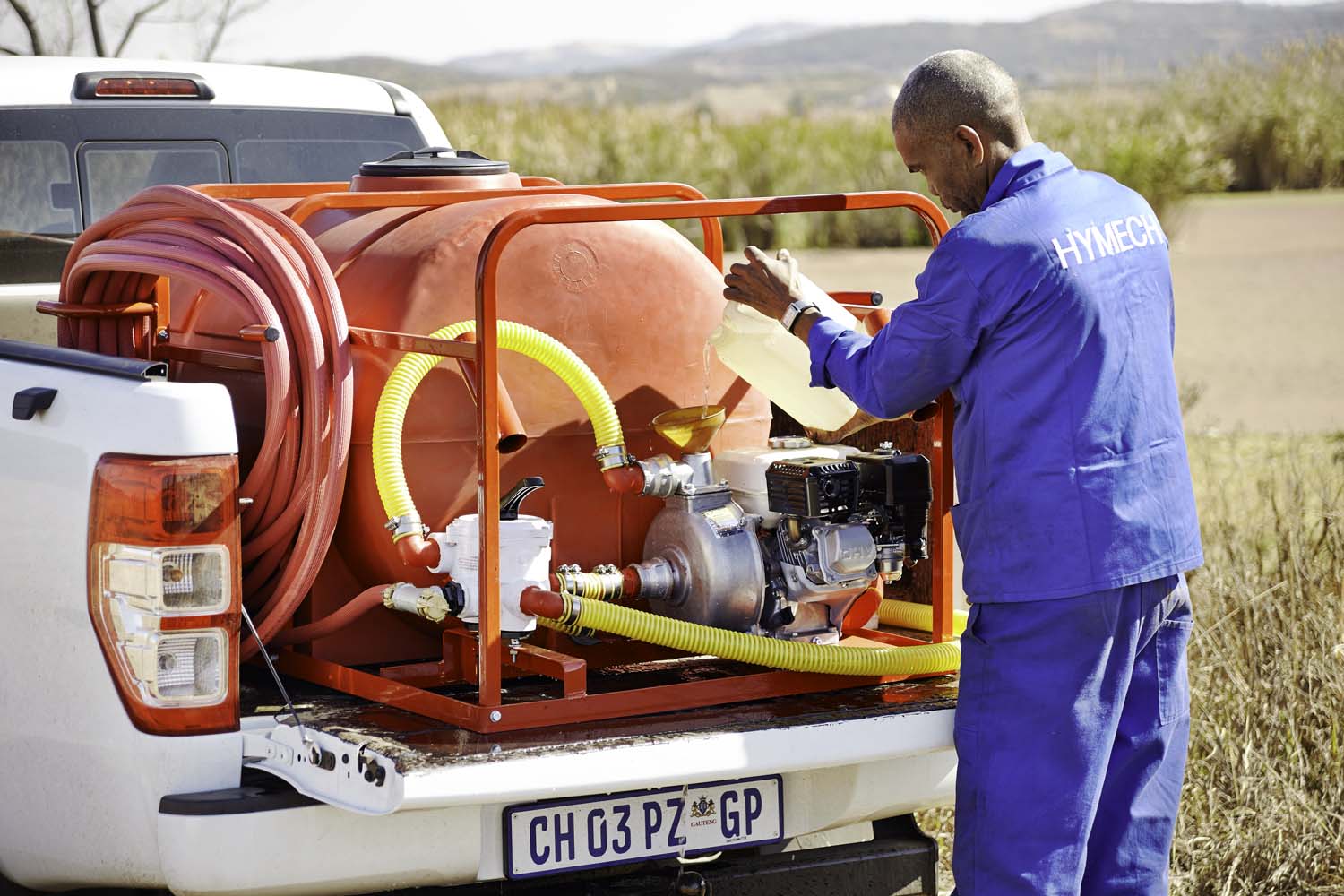

• Fill pump with 4 litre of water
• Start engine; time to spend seldprime ~ 15 seconds
• Filling of 500 litre tank ~ 100 seconds

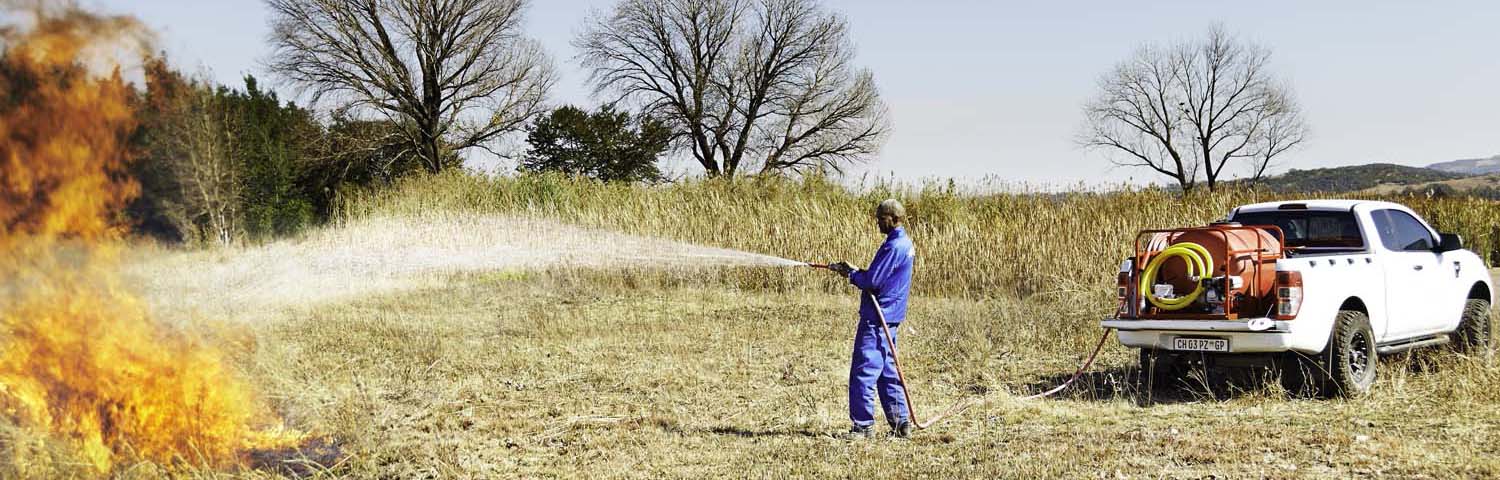

• FireFighting time ~ 30 minutes
• Praying distance ~ 20 metres
